CB Climbing Formwork

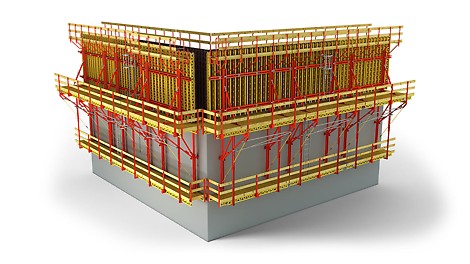

The CB climbing system provides safe working conditions with wall formwork at all heights.
For this air traffic control tower with a height of 46 m and a 6.85 m in diameter, CB 240 brackets were combined with RUNDFLEX formwork.

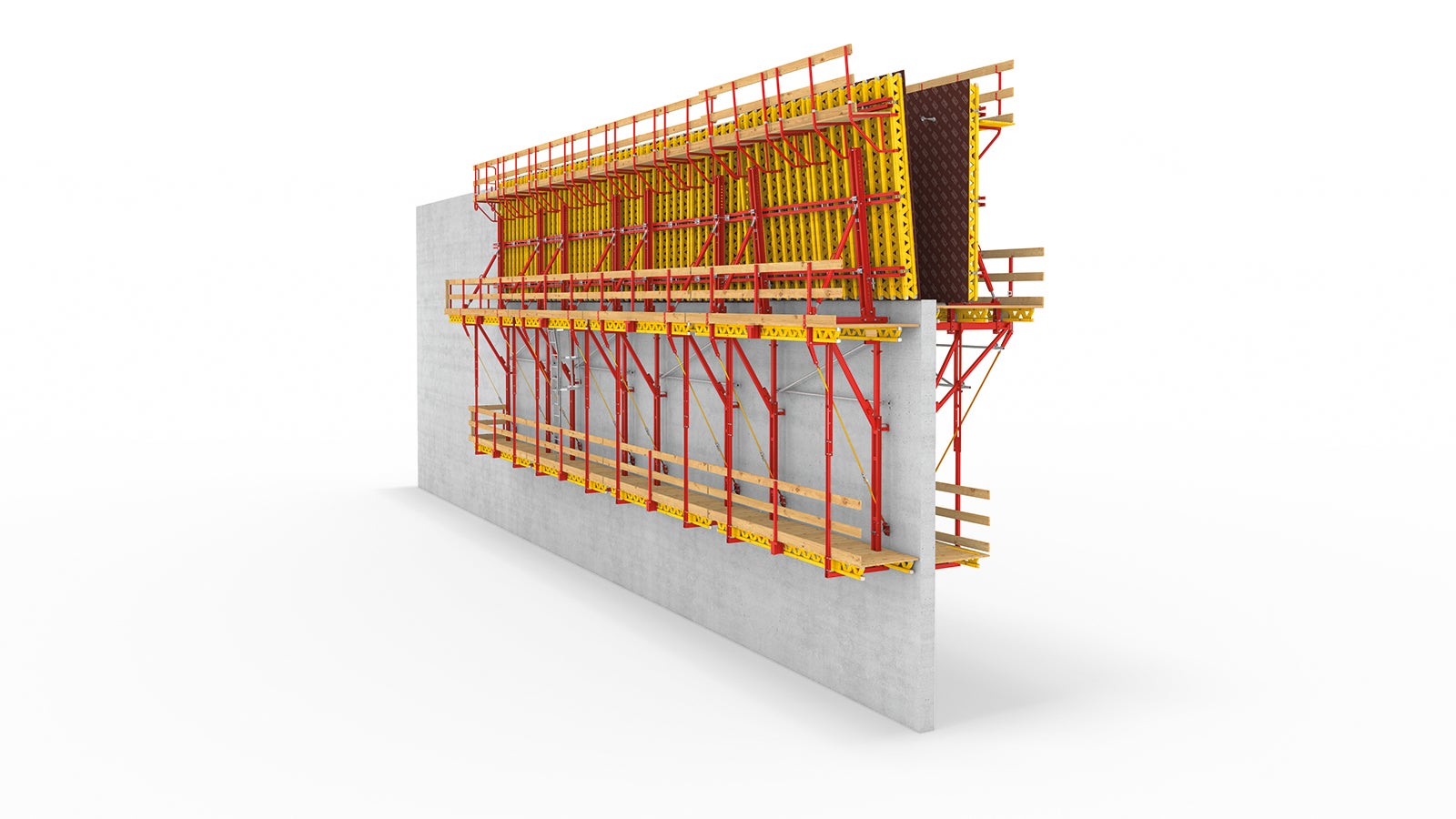

For the CB 160 climbing formwork, the formwork element (holding formwork) is inclined backwards for striking.

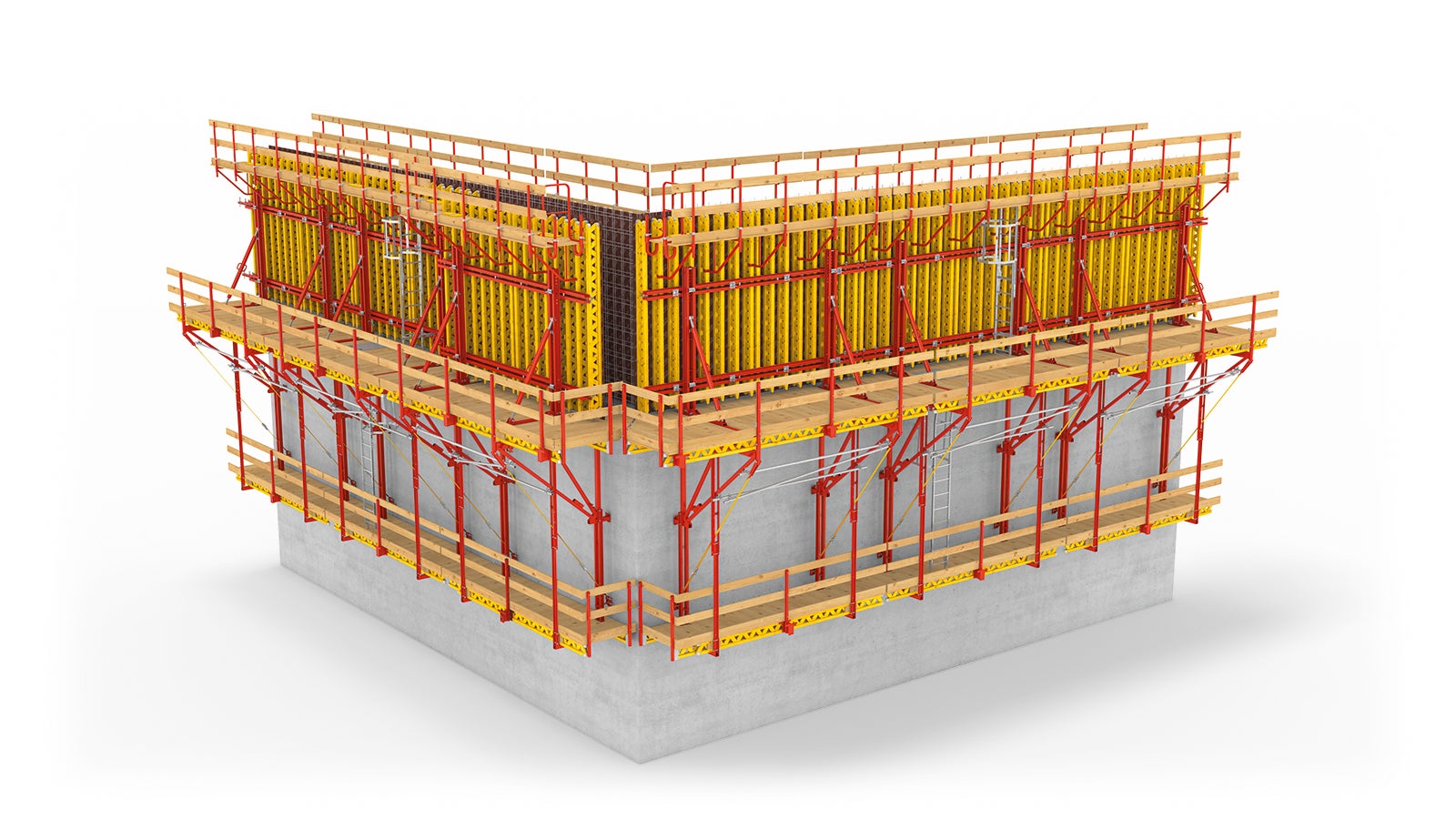

For the CB 240 climbing formwork, for striking the formwork element (closing formwork) is moved backwards by up to 75 cm with the formwork carriage.
1
/
4

Overview

CB Climbing Formwork is normally used for supporting large-sized, anchored wall formwork. The climbing unit consists of formwork, working platform, brackets with formwork carriage and strongbacks as well as fi nishing platform. It can be moved very quickly by crane.

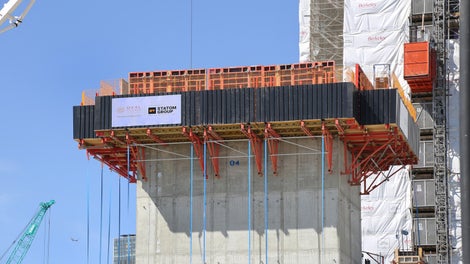

Large scaffold units

with simultaneous high load assumptions through the high loading capacity of the brackets

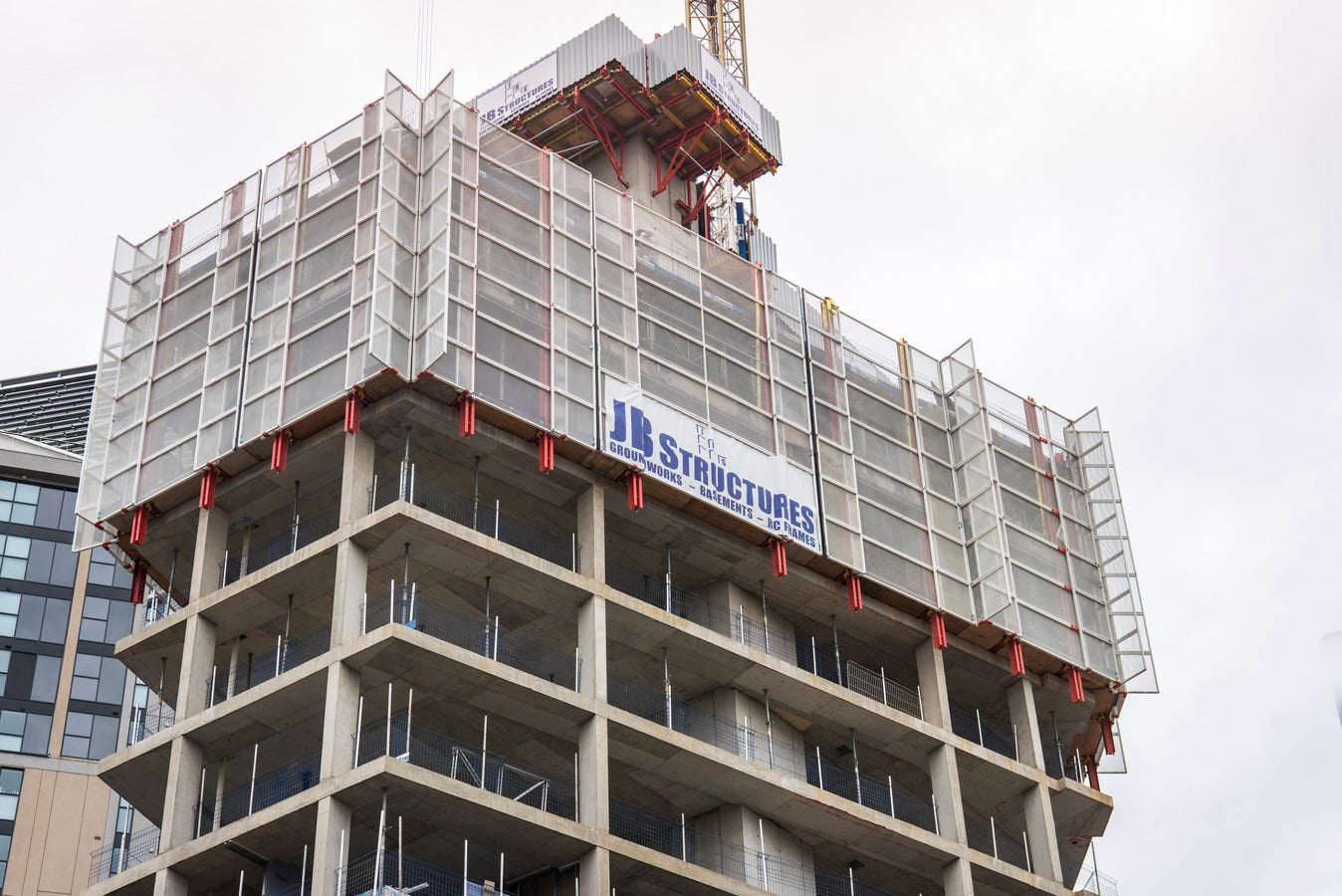

Time-saving moving procedure

of the securely assembled units consisting of platform and formwork in only one crane lift

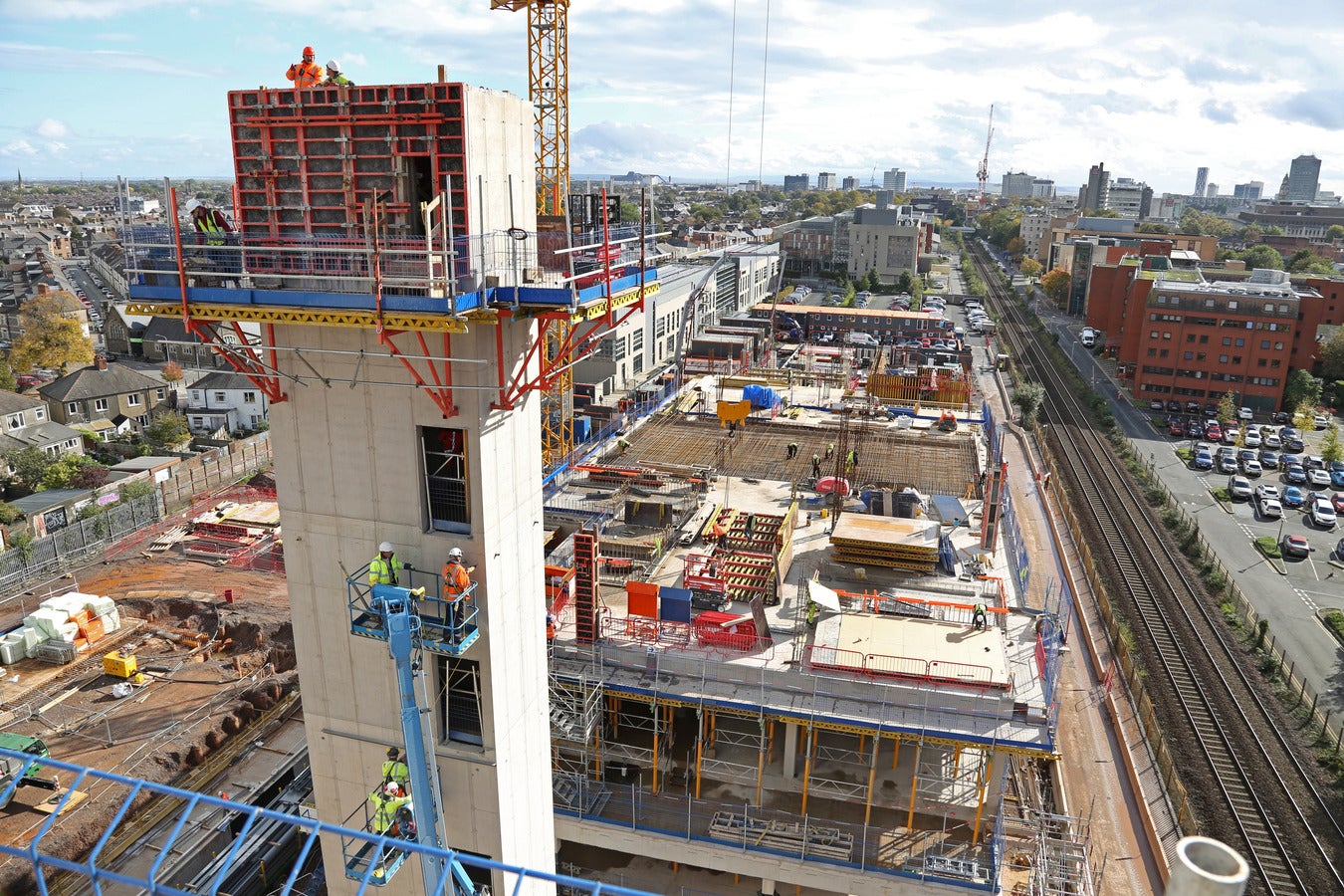

Free of tripping hazards

in front of and behind the formwork as the platform lining is placed over the brackets (valid for CB 240)

Technical Details

  • Shoring for supporting anchored wall formwork; alternatively, purely as working scaffold
  • Type static for formwork heights up to 5.40 m
  • Finishing platform with ladder provides access to the wall
  • Optional equipment with wind bracing which prevents tipping inwards

Variations

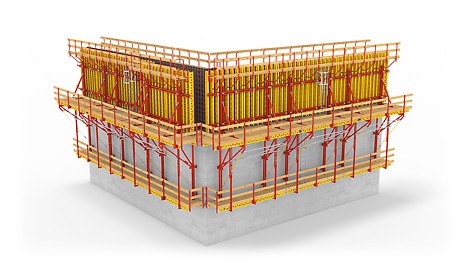

CB 240 Climbing Formwork (carriage)

Bracket width 2.40 m with carriage (75 cm retraction distance), strongback and adjustable brace

CB 160 Climbing Formwork

Bracket width 1.60 m with adjusting unit, strongback and adjustable brace

Download



EN

Climbing Systems CB 240 and CB 160
