VARIOKIT, the adjustable formwork for tunnel projects supplied by PERI

Infrastructure for Tunnelling

Construct with confidence from one end to the other

From innovative temporary works to support shaft construction to accommodating various tunnel geometries, our engineering team has a diverse level of expertise in tunnelling. With the flexible design of VARIOKIT components, we can provide a solution for any cross-section and casting method.

How we can support you

Cost-effective construction

With rentable VARIOKIT components and system integration, we can design cost-effective tunnel formwork carriages to deliver project-specific requirements and accommodate site limitations. Requirements such as drive-through openings for trucks or single-sided wall formwork are easily fulfilled with fully customisable solutions like ours.

Our tunnelling solutions are also compatible with hydraulic technology if your project requires it, which helps to speed up operations like lifting, lowering and moving. Shorter shuttering and striking times are also possible, helping to maintain planned sequences, deadlines, and costs.

Approaching complexity with collaboration

The complex nature of tunnelling projects means working together is vital to ensure success and smooth delivery. Our engineering experts and experienced project managers support you with detailed planning of concreting sections, sequencing, and adaptions in temporary works throughout your project.

Available services for your project

PERI can provide multiple services to assist with your projects.

Take a look at how we've supported tunneling projects

Watch the videos below.

  • Werrington Grade Separation
    Duncan Keeling, Construction Manager at Bell Formwork, speaks about working with PERI on the Werrington Grade Separation Scheme project.
  • Customised solutions
    Take a look at our 3D animation showing our customised special tunnel solutions.

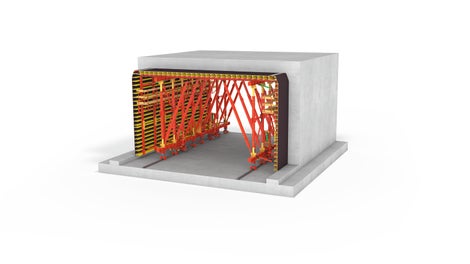

HR Render image of the PERI VTC Tunnel Carriage

VARIOKIT VTC Tunnel Carriage

The VTC Tunnel Formwork Carriage is an optimised project solution that accelerates the work process enormously. Depending on the project, it is possible to choose between an entirely manual operation or one completely equipped with hydraulic equipment. With hydraulic equipment for shuttering and striking, the efficiency of the application can be increased. Workloads are minimised for positioning, striking and moving operations.

See Product
Infrastructure

PERI Tunnel Formwork

HR Render image of the PERI VTC Tunnel Carriage
Supporting structures cost-effectively erected with system – with materials and expertise from a single source
With PERI SCS, the loads from the fresh concrete pressure are transferred without formwork ties through the brackets into the climbing anchors of the previous concreting section.
PERI UP Flex Stair Steel 100,125: For high requirements regarding load bearing capacity and accessibility.
VARIOKIT Heavy-duty shoring: Either the Heavy-Duty Tower as the Truss Girder are adjustable to the correct height and length.
The suspended scaffold can be manoeuvred with little effort due to smooth plastic rollers.
PERI UP Flex Reinforcement R75,100: Modular Reinforcement Scaffold for efficient work.
For wide-span working platforms and temporary pedestrian footbridges
PERI UP Flex Modular Working Scaffold: Extremely flexible work scaffold for a wide range of applications.

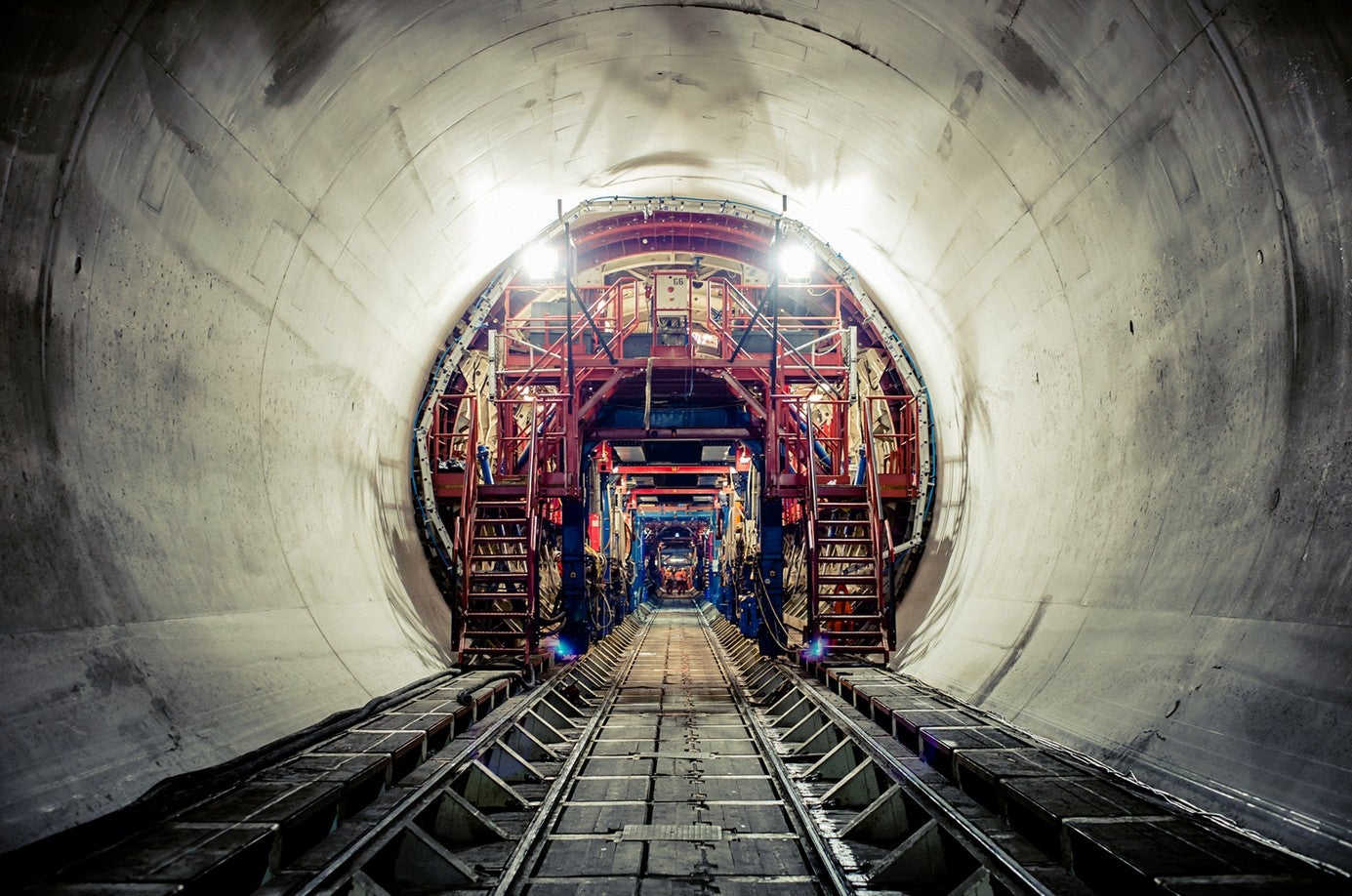

KERN Tunnel system in use to create tunnels for rail, road, energy and other applications around the world. Specialist engineering and tunnel systems.
